AMWP11.2-8100 Vertical Telescopic Mast Lift with Jib OEM/ODM

VERTICAL MAST BOOM LIFT WITH JIB

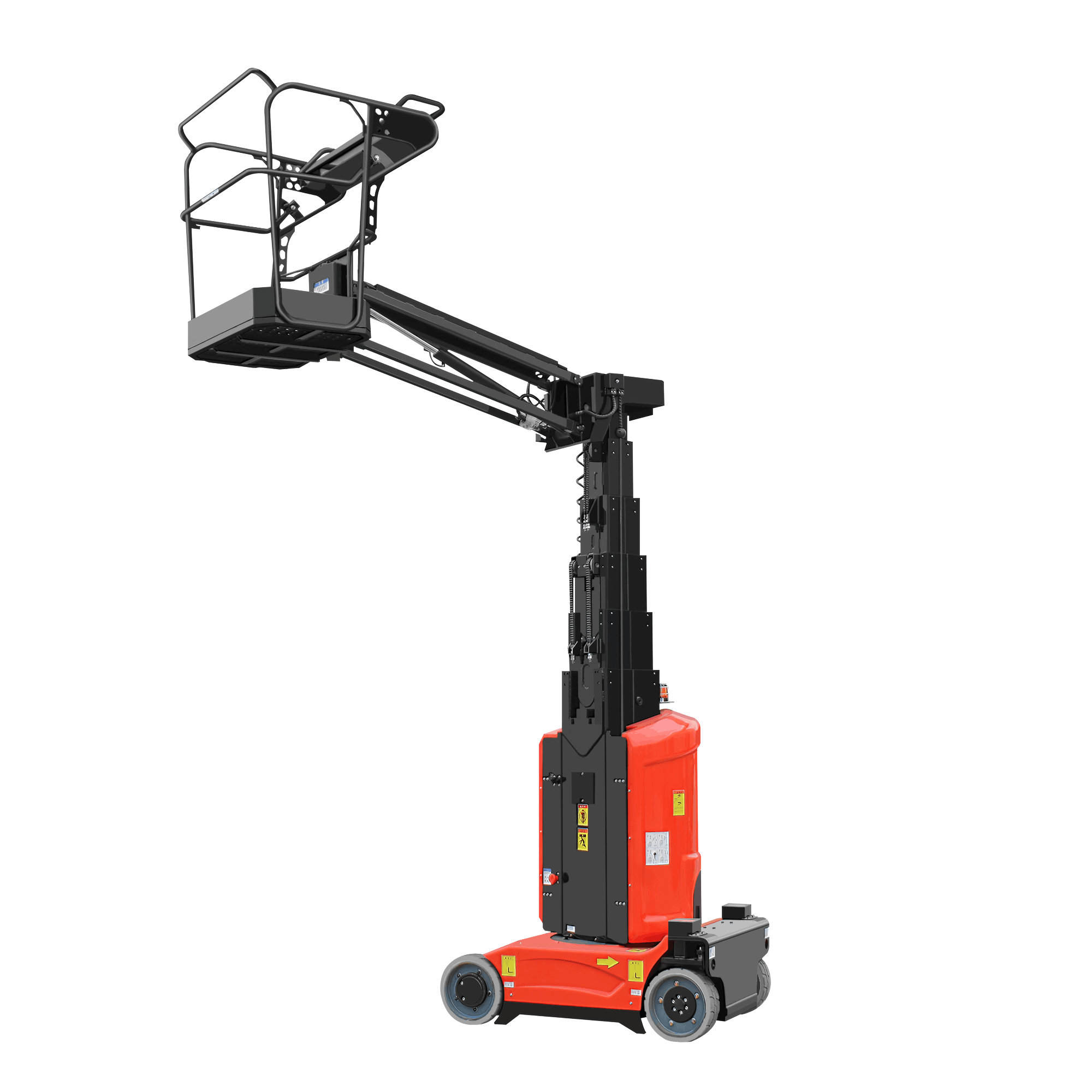

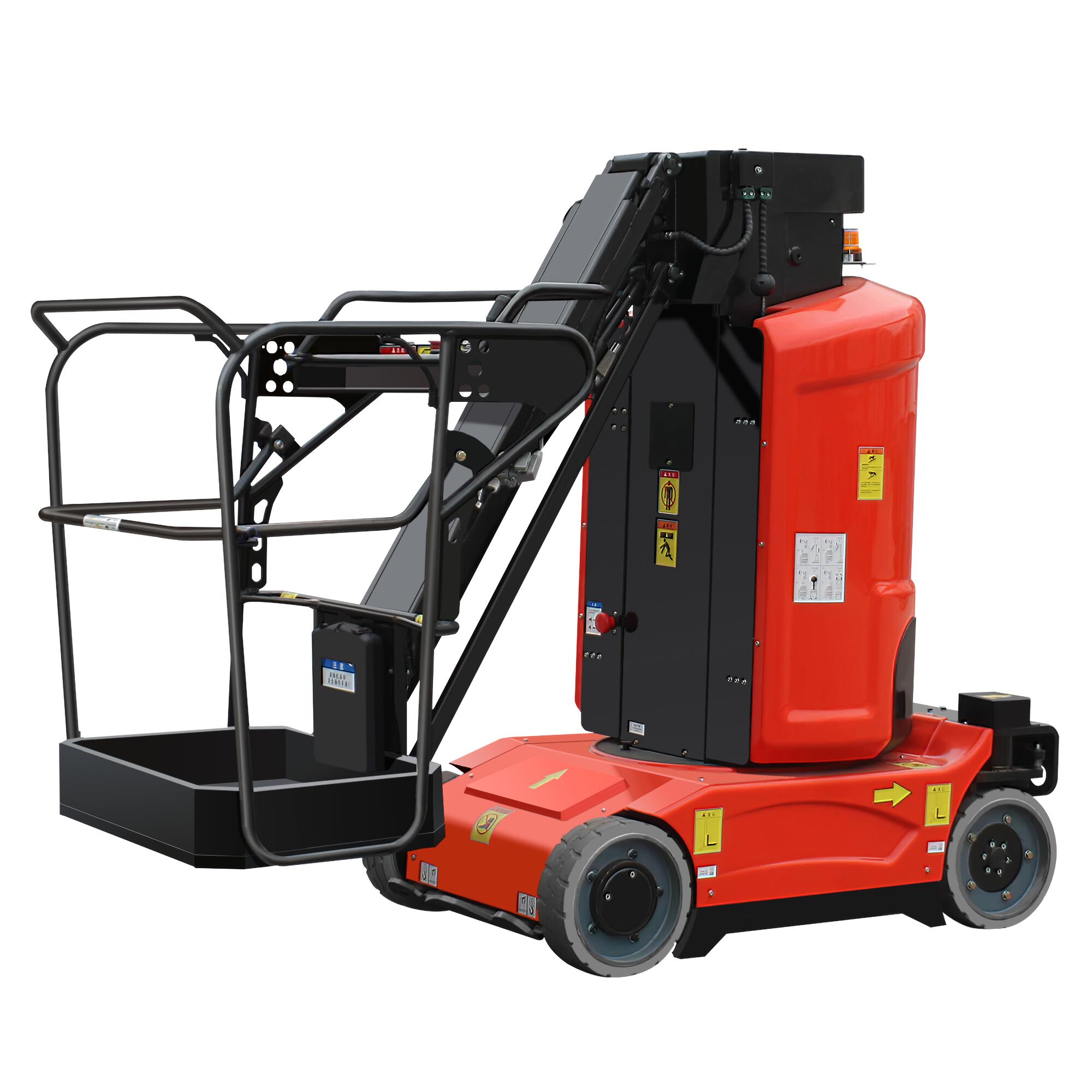

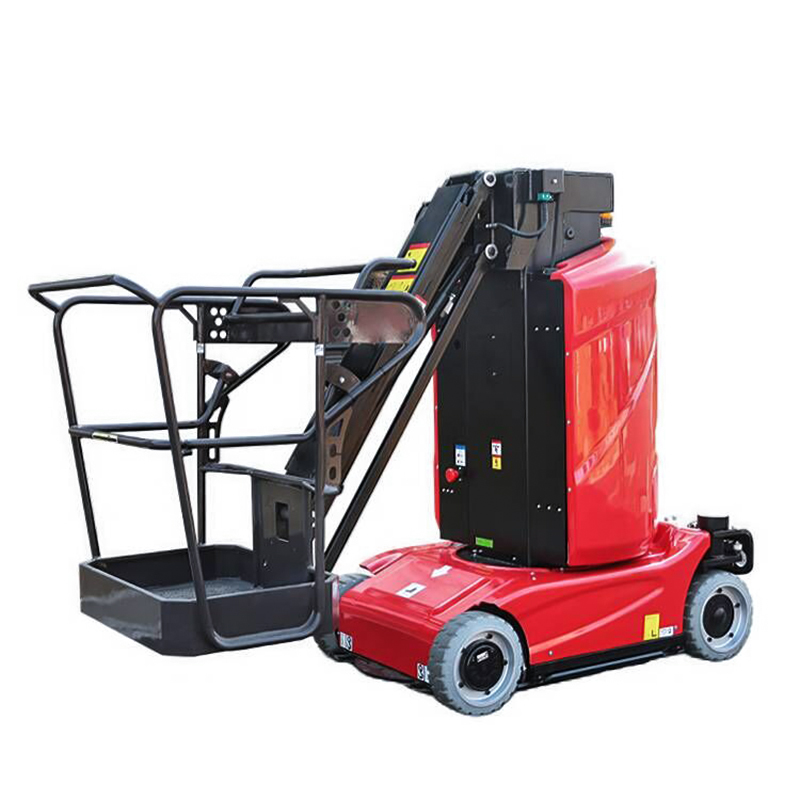

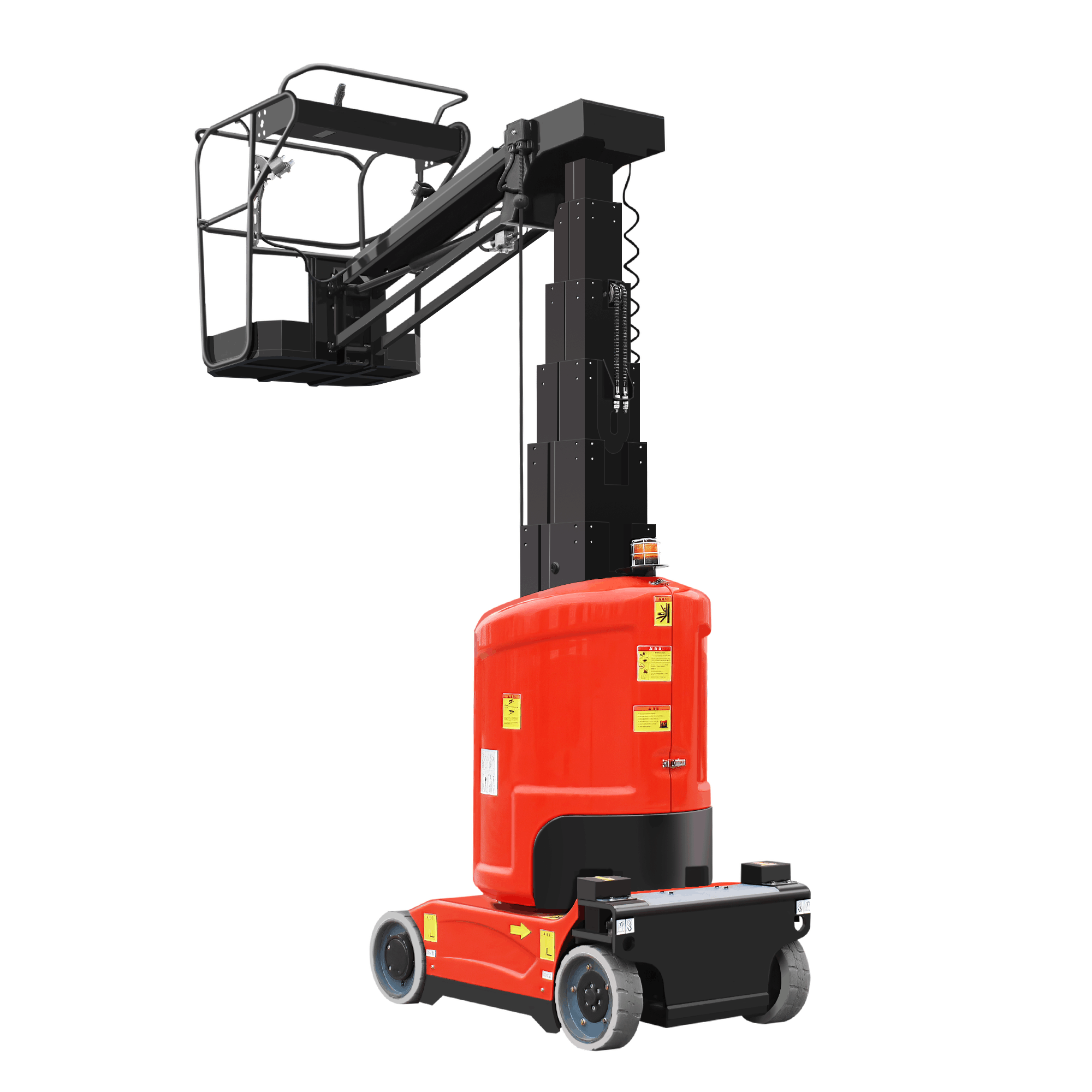

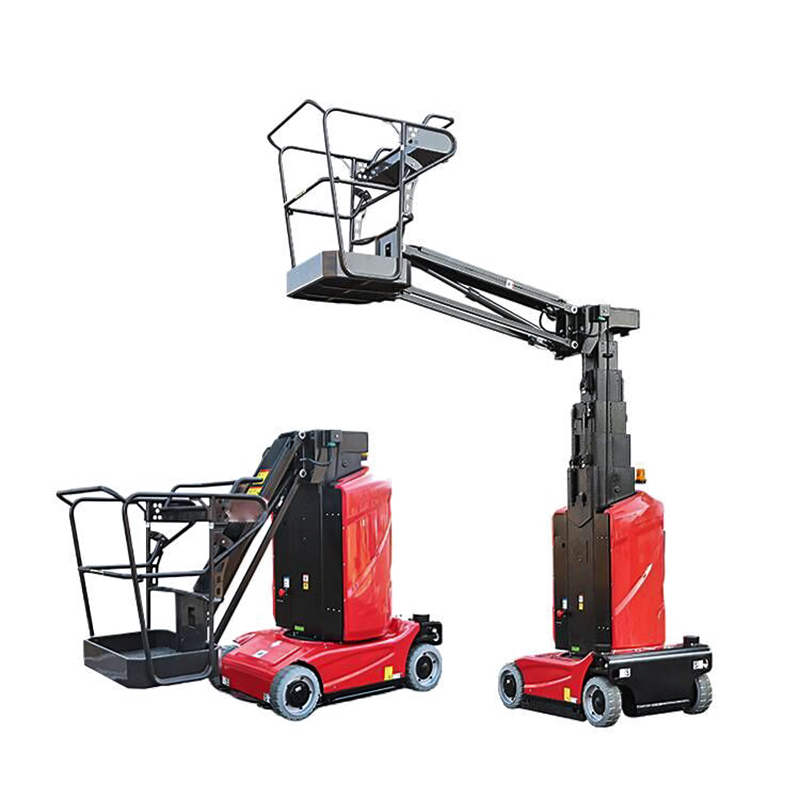

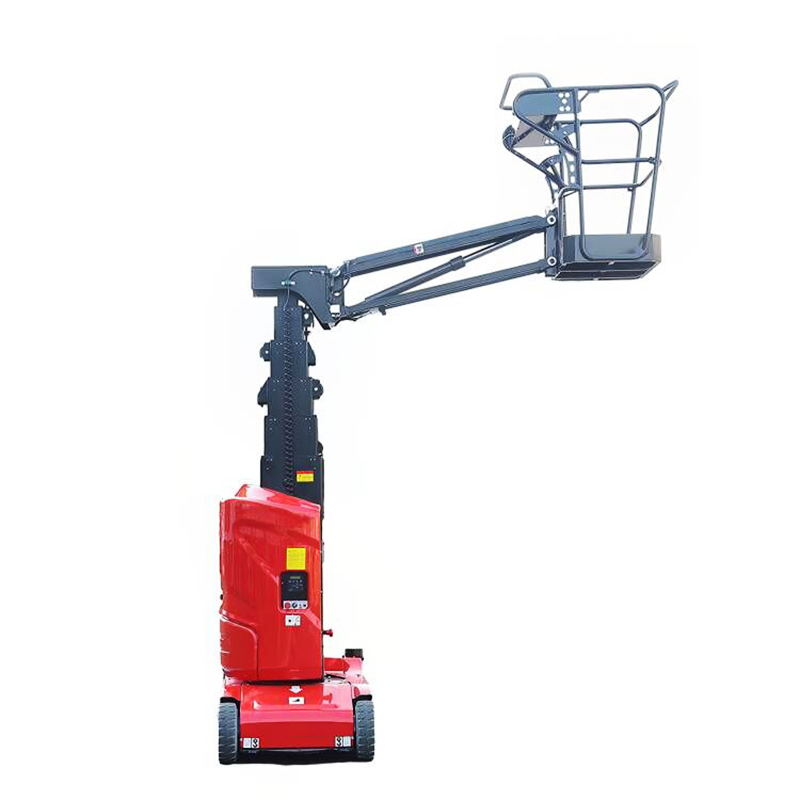

AMWP11.2-8100 Vertical Telescopic Mast Lift with Jib

Vertical mast lift with Jib-AMWP11.2-8100:
The Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom. With ultra-narrow design,mast boom lift with jib is ideal for compact spaces that require up-and-over capabilities. Suitable for both indoor and outdoor applications.
REES vertical boom lifts with jib also provides non-marking tires and zero tailswing offer ease of operation and greater maneuverability. With the vertical mast boom lift, you can get maintenance jobs done quickly and efficiently.

FEATURES
• Proportional Joystick Controls
• Self-Locking Gates
• Drivable At Full Height
• Non-Marking Tires
• Two-Wheel Drive
• Two-Wheel Steering
• Automatic Braking System
• Emergency Descent System
• Tubing Explosion-Proof System
• Fault Diagnosis System
• Tilt Alarm
• Motion Alarm
• Horn
• Hour Meter
• Charging Protection System
• Flashing Beacon
• Automatic Pothole Protection
• Drive Enable
• Charging Indicator
• Manual Brake Release
• Lanyard Attachment Point
• Tie-Down And Lifting Points
• Platform Load Sense System
• Emergency Stop Button
E-mail: [email protected]
Play Video Contact Us

  • Vertical mast lift with Jib-AMWP11.2-8100:
    The Vertical telescopic mast with a jib lets you reach up and over obstacles in tighter spaces than an articulating boom. With ultra-narrow design,mast boom lift with jib is ideal for compact spaces that require up-and-over capabilities. Suitable for both indoor and outdoor applications.
    REES vertical boom lifts with jib also provides non-marking tires and zero tailswing offer ease of operation and greater maneuverability. With the vertical mast boom lift, you can get maintenance jobs done quickly and efficiently.

    Model

    AMWP11.2-8100

    Max. Working Height

    11.2m

    Max. Platform Height

    9.2m

    Max. Horizontal Reach

    3m

    Up and Over Height

    7.89m

    guardrail height

    1.1m

    Overall Length

    2.53m

    Overall Width

    1.0m

    Overall Height（stowed)

    1.99m

    Platform Dimension

    0.62*0.87m

    Ground Clearance(Stowed)

    70mm

    Ground Clearance(Raised)

    19mm

    Wheelbase

    1.22m

    Loading capacity

    200kg

    Occupants

    2

    Turning Radius(Inside/Outside)

    0.23/1.65m

    Turret Rotation

    345°

    Jib Movement

    130°

    Travel Speed(Stowed)

    4.5km/h

    Travel Speed(Raised)

    0.5km/h

    Up/Down Speed

    42/38s

    Max. Working Slope

    X-2.5°，Y-2.5°

    Tires

    Ф381*127mm

    Driving Motor

    24V/1.5kW

    Lifting Motor

    24V/3kW

    Battery

    24V/240Ah

    Charger

    24V/30A

    Weight

    2950kg
