HOME / PRODUCTS / VERTICAL MAST LIFTS / AMWP6100 Hydraulic Vertical Mast Lifts

AMWP6100 Hydraulic Vertical Mast Lifts OEM/ODM

VERTICAL MAST LIFTS

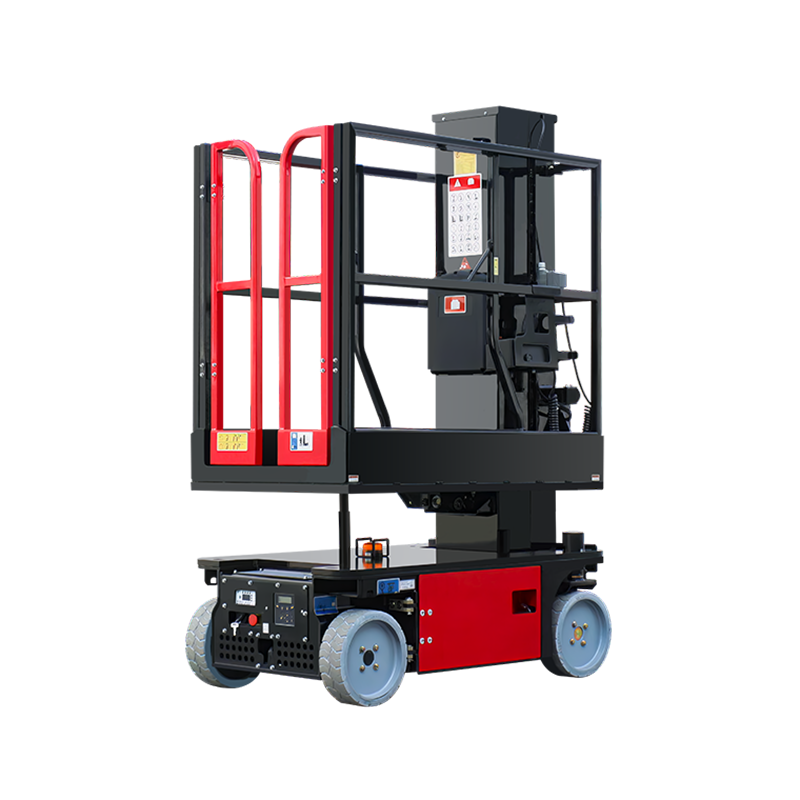

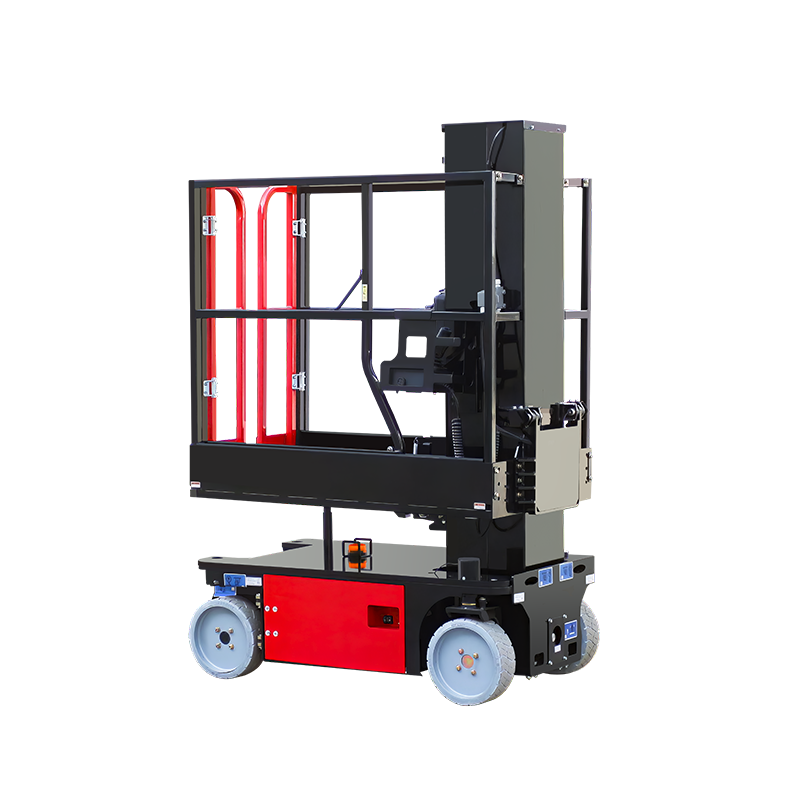

AMWP6100 Hydraulic Vertical Mast Lifts

The driveable vertical lifts run on electric power thanks to a reliable electric drive. These low level access also offers ease of operation and greater maneuverability, to guarantee smooth working at narrow aisles.

With the agility and their compact dimensions, straight elevation, REES vertical mast lifts are extremely easy to drive in the tightest spaces,make it a perfect AWP and MEWP tool for indoor access. The extension platform provides additional space.

REES vertical boom lifts also offer ease of operation and greater maneuverability. With the vertical lift, you can get maintenance jobs done quickly and efficiently.

FEATURES

1.Proportional contorls

2.Automatic Pothole protection

3.Driveable at full height

4.Non-marking tyre

5.Automatic brake system

6.Emergency lowering system

7.Emergency stop button

8.Cylinder holding valve

9.Onboard diagnostic system

Next Prdouct: Mast Boom Lift with jib
E-mail: [email protected]
Play Video Contact Us

  • The REES AMWP3.6-6100 Self-propelled vertical boom lifts are compact, low-weight machines that increase productivity on the job thanks to their ability to fit through narrow aisles and in most passenger elevators. And, mobile mast lifts can be driven through doorways with operator on board. A zero inside turning radius and full elevation drive feature also contribute to these models’ increased productivity.

    Max. Working Height 5.6m
    Max. Platform Height 3.6m
    Loading Capacity 227kg
    Ext. Platform Capacity 114kg
    Overall Length 1.36m
    Overall Width 0.76m
    Overall Height 1.7m
    Platform Dimension 1.28m×0.70m
    Ext. Platform Length 0.51m
    Wheel Base 1.04m
    Inner Turning Radius 0m
    Outer Turning Radius 1.4m
    Travel Speed(Stowed) 4km/h
    Travel Speed(Raised) 1.1km/h
    Up/Down Speed 31/32sec
    Gradeability 0.25
    Drive Tyres Φ305×100mm
    Drive Motors 2×24VDC/0.5kW
    Lifting Motor 24VDC/1.2kW
    Battery 2×12V/100Ah
    Charger 24V/15A
    Weight 810kg
